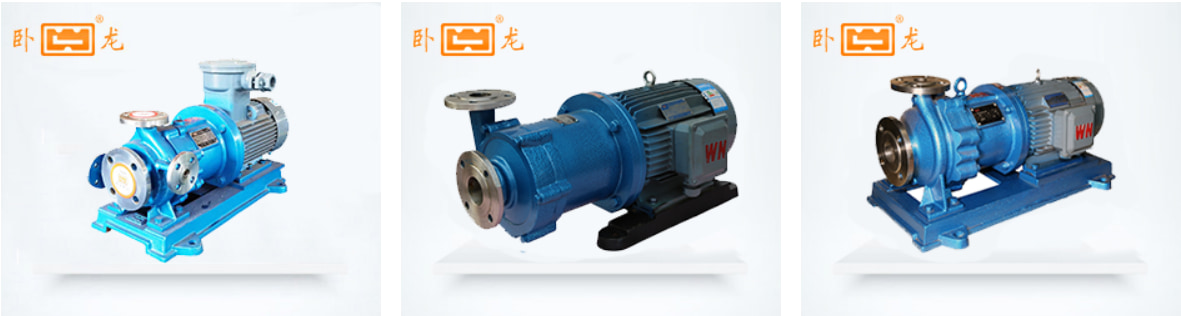

Stainless steel magnetic pump

         The stainless steel magnetic pump uses the principle of modern magnetic mechanics and the characteristics of magnets attracting ferromagnetic materials and the magnetic force between magnets or magnetic fields. It is the crystallization of transmission technology, material technology, and manufacturing technology. The motor is connected to the outer magnetic rotor through an external coupling, and the impeller is connected to the inner magnetic rotor.

            A fully sealed isolation sleeve is provided between the outer magnetic rotor and the inner magnetic rotor. The isolation sleeve is fastened to the pump cover to completely separate the inner and outer rotors, so that the transported medium is sealed in the pump body in the form of a static seal and will not leak. When the motor drives the outer magnetic rotor to rotate, due to the mutual attraction and repulsion between the permanent magnetic poles of the inner and outer magnetic rotors. The magnetic transmission is completed by the magnetic coupler, which mainly includes components such as the inner magnetic rotor, the outer magnetic rotor and the isolation sleeve, and is the core component of the magnetic

pump.

The structure, magnetic circuit design, and materials of its various components of the magnetic coupler are related to the reliability of the magnetic system, the efficiency of magnetic transmission, and the life of the magnetic system. The inner magnetic rotor is driven to rotate together, thereby driving the pump shaft to rotate, achieving the purpose of conveying liquid. The application of magnetic drive technology completely solves the shaft seal leakage problem of mechanical transmission pumps. Therefore, this product is widely used in chemical industry, acid production, alkali production, smelting, rare earth, pesticide, dye, medicine, papermaking, electroplating, electrolysis, pickling, radio, chemical foil, scientific research institutions, national defense industry and other industries.
