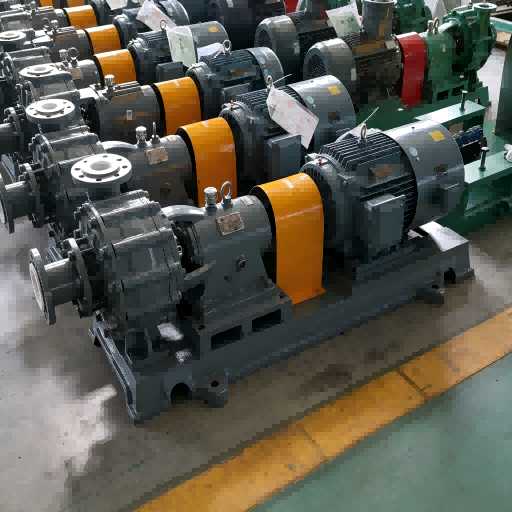

The UHB-ZK series mortar pump is a cantilever single-stage, singlesuction centrifugal pump. Its flow-through components are made ofsteel lined ultra-high molecular weight polyethylene, which has strongcorrosion resistance, wear resistance, and creep resistance (resistant toenvironmental stress cracking). At the same time, it adopts a metalmatrix structure to improve the product's pressure bearing capacity.
This pump can adapt to various working conditions. For example, it cantransport acid and alkali clear liquids or slurries, as well as variouscorrosive slurries in the refining industry. It can also transport variousdilute acids in the sulfuric acid industry and various types of wastewaterin the environmental protection industry.
This series of pumps adopts multiple sealing methods: K-type powerseal, single end mechanical seal, containerized mechanical seal, anddouble end mechanical seal, which can be selected according to specific working conditions.
Low power structure: Products with a diameter ≤ 200mm:
(1) Adopting a bracket structure, the pump body has no feet, and the bracket shares a base with the motor.(2) Bearing lubrication method:For diameters s 125mm. grease lubricated bearings are used. and no additional oil is added to the bearing housing.Caliber>2Smm, oil lubricated bearings are used. and an additional 46 # engine ollis required for the bearing housing.
High power structure: products with a diameter > 250mm
(1) Adopting a suspension structure, the pump body is equipped with a foot, and the pump body shares a base with the motor.
(2) Bearing lubrication method Oi lubricationis used for allbearings, and an additonal 46 # engine ollis required for the bearing housing.
| Model |
Flow rate |
Head |
Efficiency |
NPSH |
Suction x Outlet |
Motor power |
Weight |
| UHB-ZK80/50-80 |
35 |
82 |
40 |
5 |
80*65 |
30 |
540 |
| 50 |
80 |
50 |
| 60 |
72 |
48 |
Q:What is the cause of cavitation during the operation of UHB-ZK80/50-80 mortar pump and how should it be handled?
A: Cavitation is mostly caused by insufficient inlet liquid level, air leakage in the suction pipeline, and blockage of the inlet pipeline. Firstly, check the sealing of the suction pipeline, increase the inlet liquid level, and reduce pipeline resistance;
Q: What are the key points to pay attention to in the daily maintenance of UHB-ZK80/50-80 mortar pump?
A: It is strictly prohibited to operate in idle mode, which can quickly damage the lining plastic components and machine seals; Regularly inspect the mechanical seal for leaks and check the fastening status of the coupling guard; Regularly check the changes in import and export pressure to determine if there is scaling or wear in the impeller and pump chamber.
