What are the applications of fluoroplastic magnetic pumps in?

Fluoroplastic magnetic pump operates based on modern magnetic mechanics principles, utilizing the magnetic attraction of ferromagnetic materials and the magnetic interaction between magnets or magnetic fields. It is the crystallization of transmission technology, material technology, and manufacturing technology synthesis. The electric motor is connected to the outer magnetic rotor through an external coupling, and the impeller is connected to the inner magnetic rotor. There is a fully sealed isolation sleeve between the outer magnetic rotor and the inner magnetic rotor, which is fastened to the pump cover to completely separate the inner and outer rotors, so that the conveyed medium is sealed in a static manner inside the pump body without leakage. When the motor drives the outer magnetic rotor to rotate, the mutual attraction and repulsion between the permanent magnetic poles of the inner and outer magnetic rotors occur. Magnetic transmission is completed by a magnetic coupling, which mainly includes internal magnetic rotor, external magnetic rotor, and isolation sleeve, and is the core component of a magnetic pump. The structure, magnetic circuit design, and materials of each component of a magnetic coupler are related to the reliability, magnetic transmission efficiency, and lifespan of the magnetic system. The application of magnetic drive technology completely solves the problem of shaft seal leakage in mechanical transmission pumps by driving the inner magnetic rotor to rotate together, thereby driving the pump shaft to rotate and achieve the purpose of conveying liquid. Therefore, this product is widely used in chemical, acid, alkali, smelting, rare earth, pesticide, dye, pharmaceutical, papermaking, electroplating, electrolysis, acid washing, and wireless industries

Industries such as electronics, chemical foil, scientific research institutions, and defense industry.

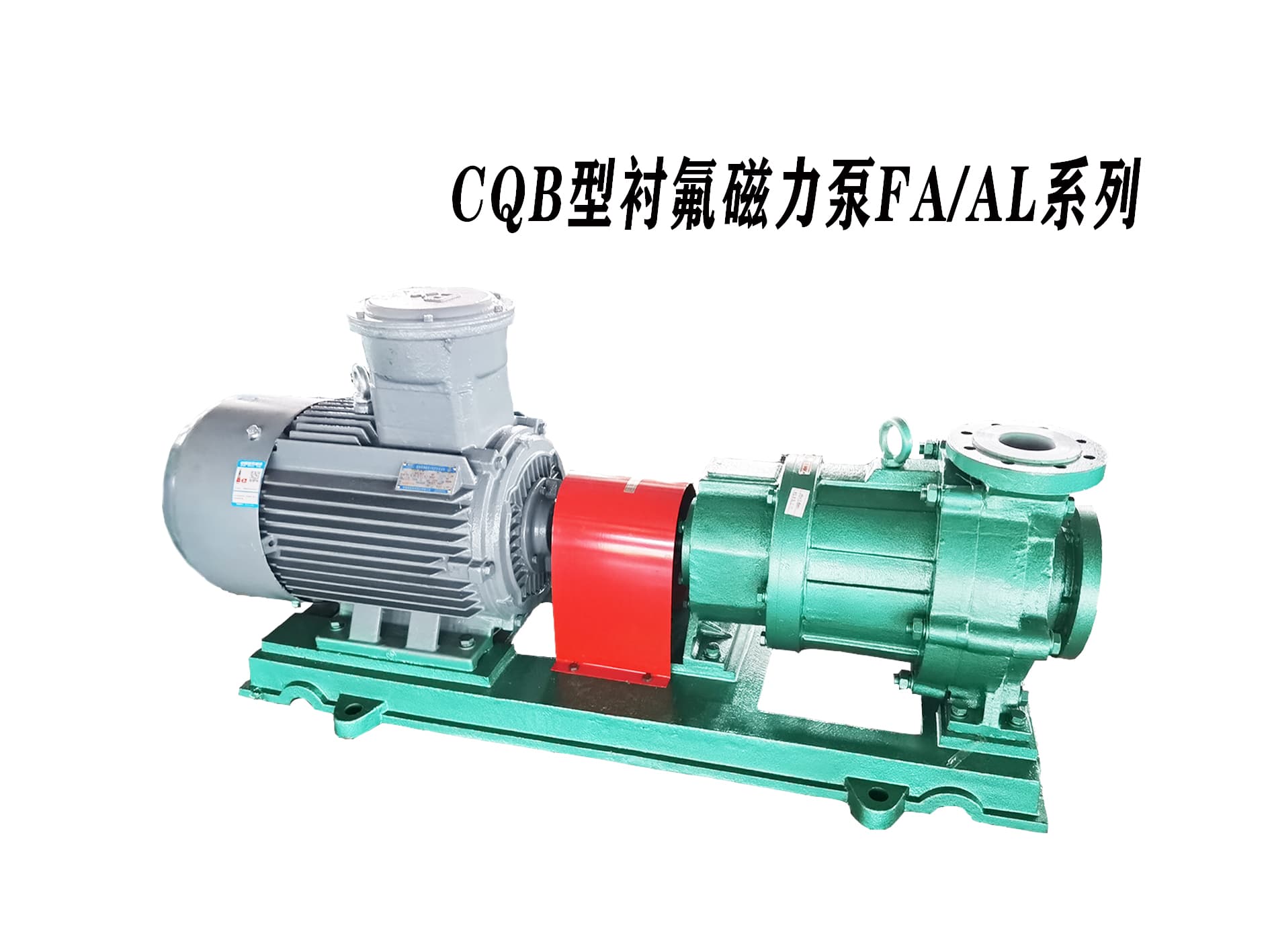

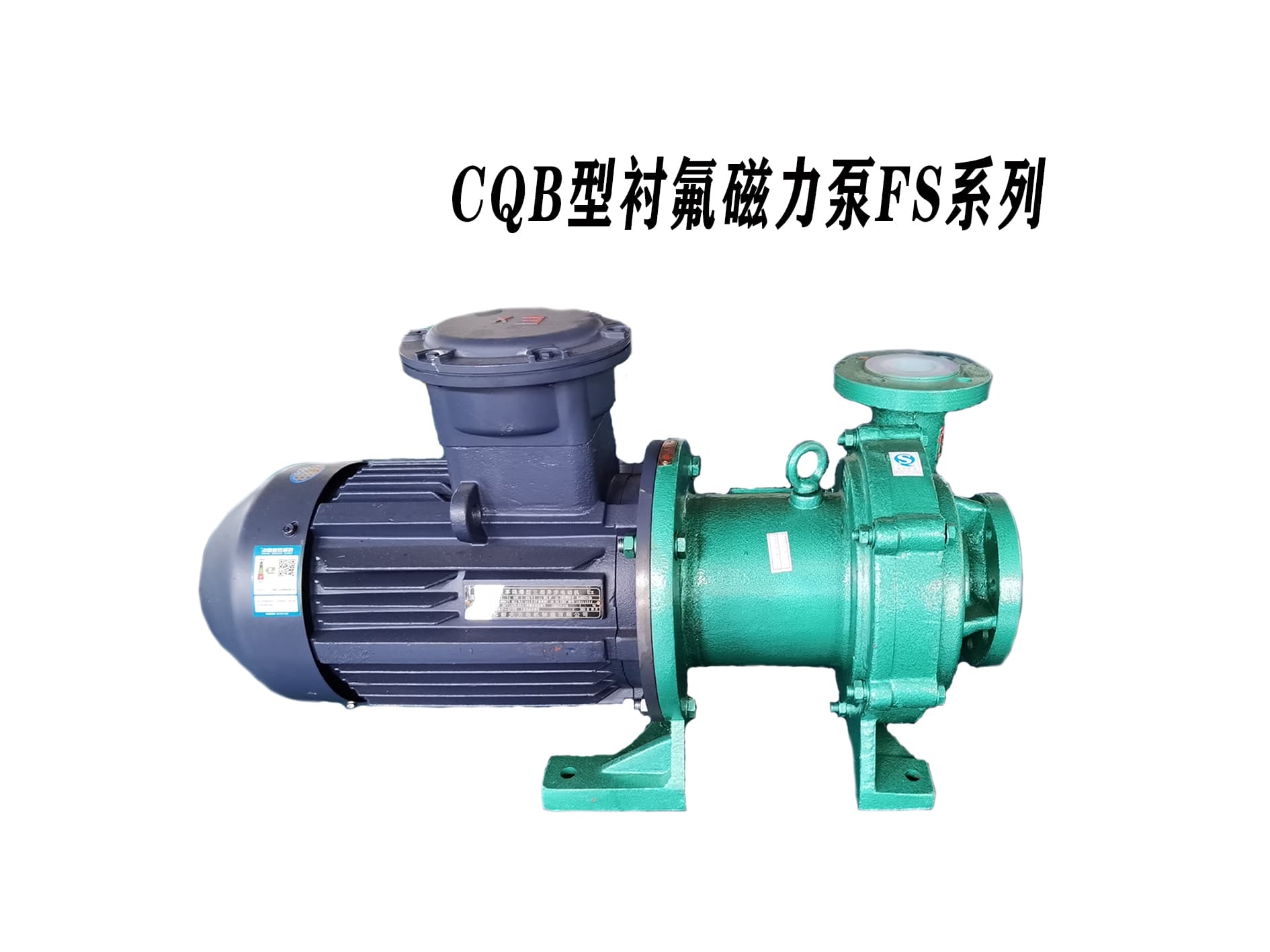

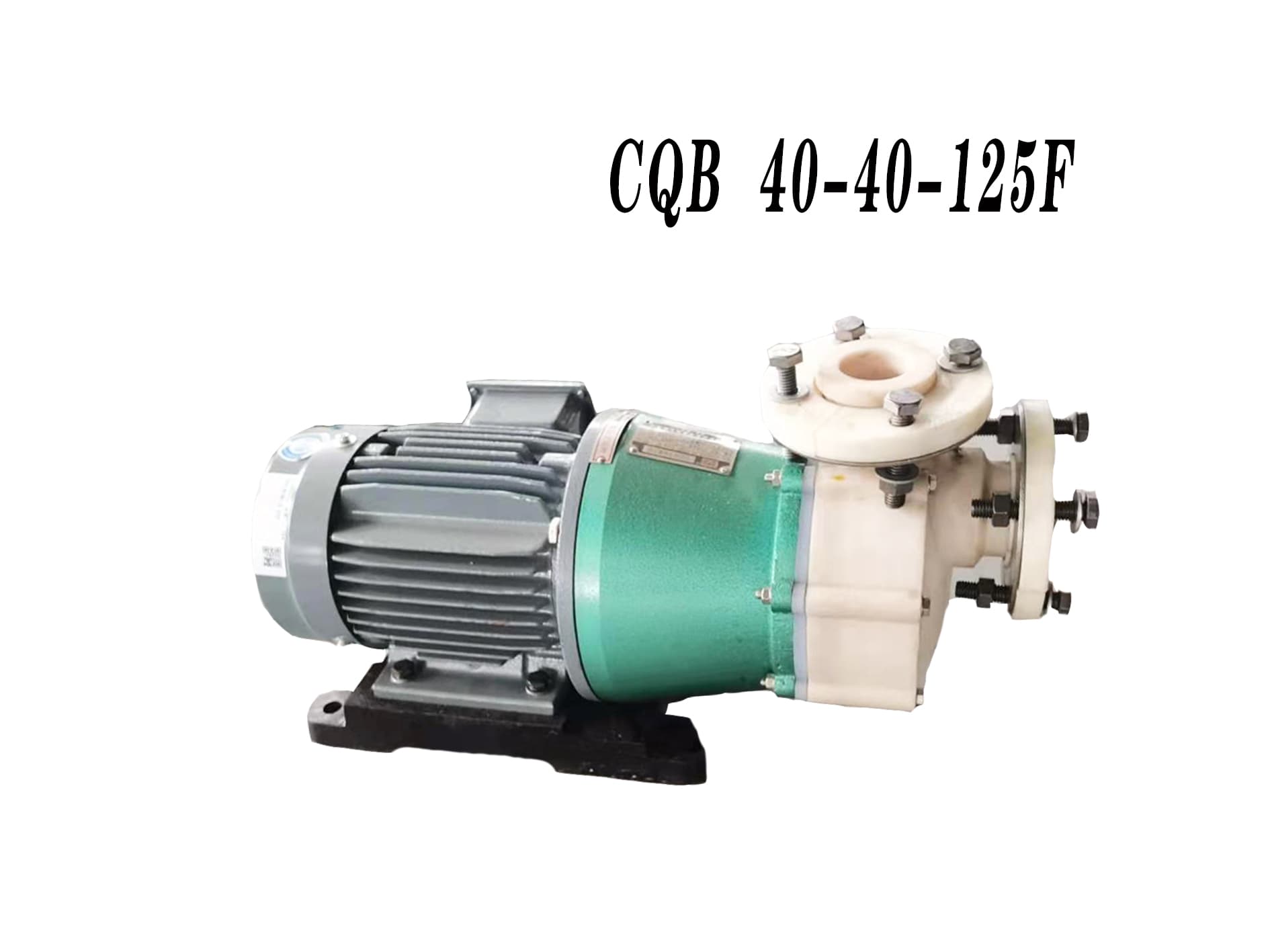

Fluoroplastic magnetic pumps can be divided into CQB type fluorine lined magnetic pumps, CQB type perfluoromagnetic pumps, CQB type fluorine lined magnetic pumps FB series, CQB type fluorine lined magnetic pumps FD series, CQB type fluorine lined magnetic pumps FS series, IMD series magnetic drive pumps, ZMD self-priming magnetic pumps, and various magnetic insulation pumps according to their models.
