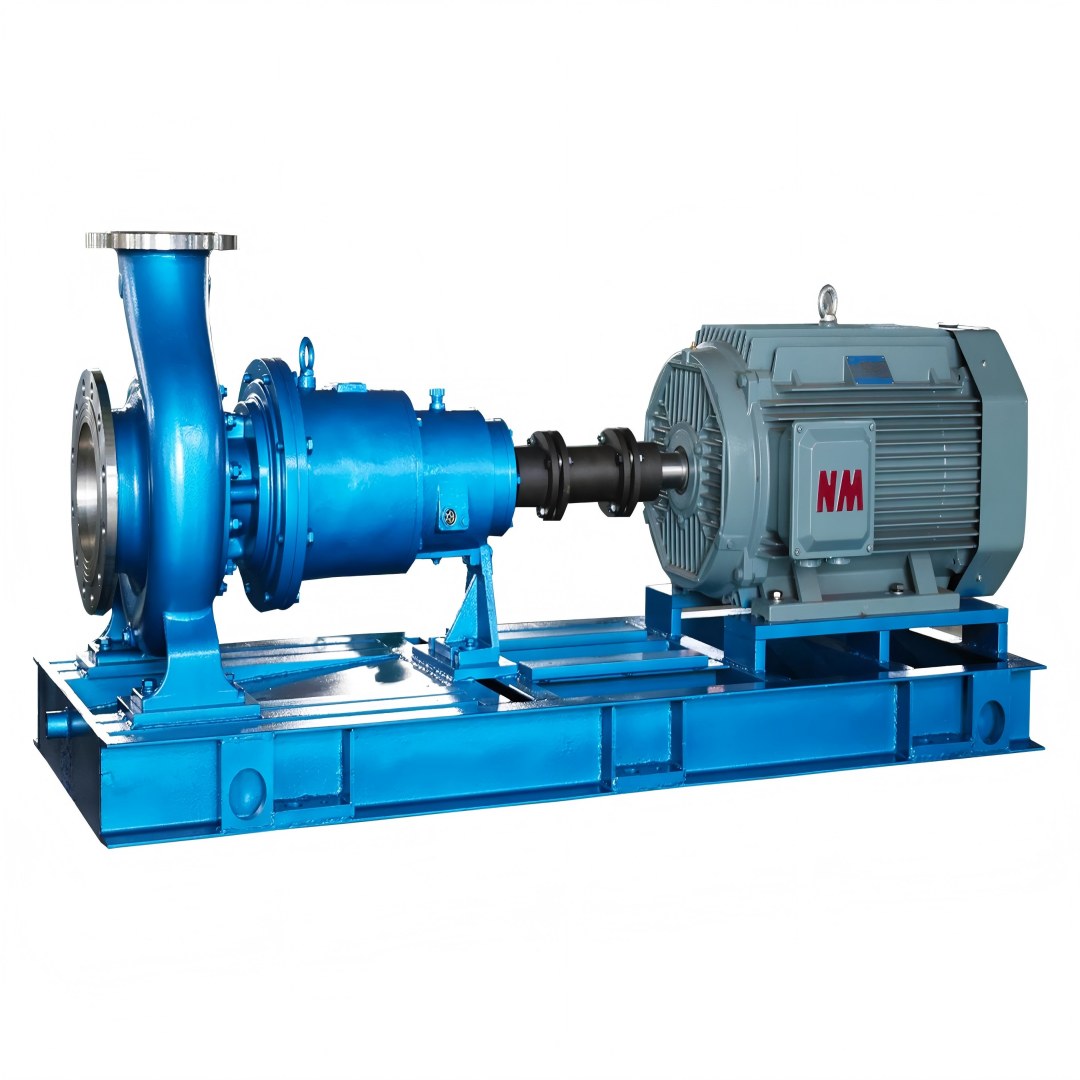

CQL200-150-250A Stainless Steel Magnetic Pump is a sealless magnetic drive centrifugal pump designed for industrial fluid transfer. It adopts static seal instead of dynamic seal to achieve zero leakage, effectively preventing the leakage of flammable, explosive, toxic, corrosive and volatile media. The wetted parts are made of high-quality stainless steel, featuring excellent corrosion resistance, stable performance and long service life.
This model has a compact structure, low noise, easy installation and maintenance, and is widely used in petrochemical, chemical, pharmaceutical, metallurgy, electroplating, environmental protection and other fields. It is an ideal equipment for safely transporting various corrosive media in demanding working conditions, which can meet the long-term stable operation requirements of users.
Scope of use:(I) Pressure resistance limit, The pressure resistance limit of the pump is 1.6MPa. Please note that the output pressure of the pumpannot exceed the pressure resistance limit.,(2)Operating temperature -40°C-260°C Environmental temperature range 0-40°C，Envtonmental humidtyrenge 35-85％RH。（3） ltsforbddento trenspotmeda wthparddesend eystals end tsforbiddentotransport media that wll generate a large number of bubbles. (4) The influence of medum viscoslty on pump performance: Whenthe output liquid changes,the performance of the pump also changes.
